‹ Home › Inventory › 2022 Harley-Davidson^® Pan America™ 1250 Special Black

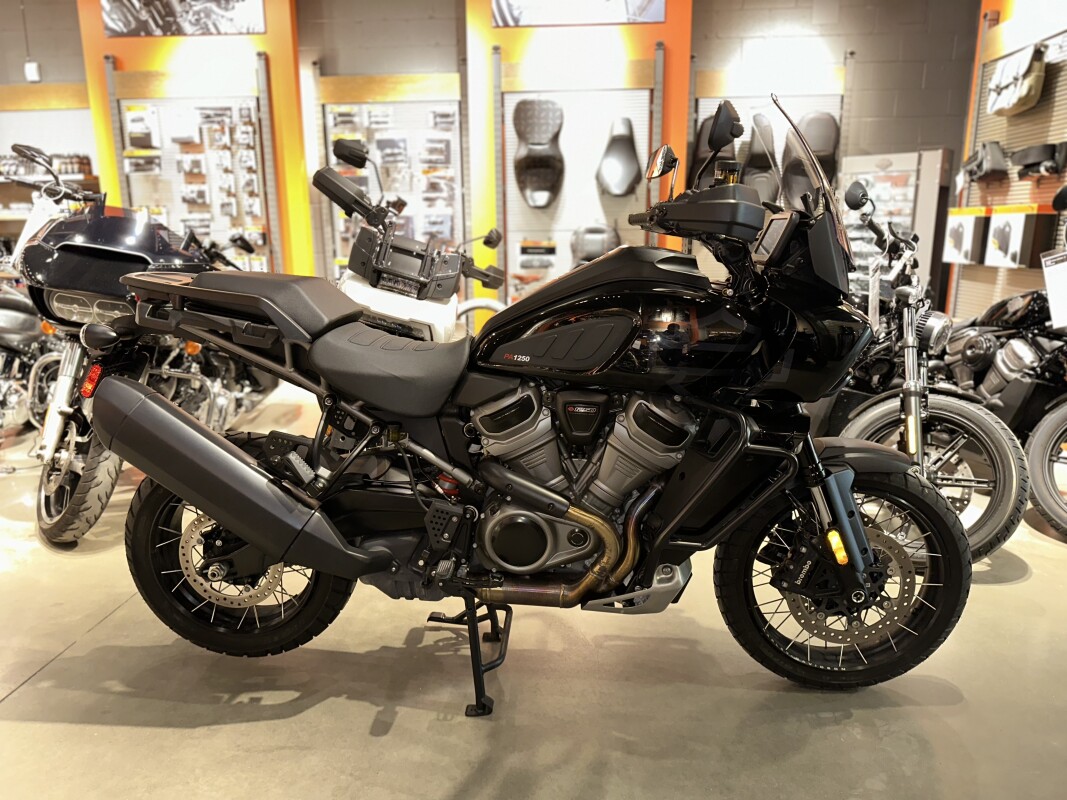

2022 Harley-Davidson<sup>®</sup> Pan America™ 1250 Special Black

$19,999.00 This Price Includes all applicable Fees, Only the taxes and licensing are extra. Save your money and take advantage of easy Harley-Davidson® financing solutions, we'll explain how. "We have you covered" with up to 5 years, unlimited mileage H-D™ Factory Endorsed Coverage Available. Details in store

The Pan America™ 1250 Special motorcycle is our premier two-wheel multi-tool built to endure, designed to explore, and engineered for adventure.

Specifications

Dimensions

add remove
- Length:

  2270 mm
- Seat height, laden (low seat position):

  31.1 in. (789 mm)
- Seat height, laden (high seat position):

  32 in. (814 mm)
- Seat height, unladen (low seat position):

  33.4 in. (850 mm)
- Seat height, unladen (high seat position):

  34.4 in. (875 mm)
- Ground clearance:

  175 mm
- Rake (steering head):

  25
- Trail:

  108 mm
- Wheelbase:

  1585 mm
- Tires, front specifications:

  120/70R19 60V
- Tires, rear specifications:

  170/60R17 72V
- Fuel capacity:

  21.2 l
- Oil capacity:

  3.3 l
- Weight, as shipped:

  242 kg
- Weight, in running order:

  117.03 kg
- Tire, type:

  H-D®/Michelin™Scorcher™“Adventure”, Radial
Engine

add remove
- Engine:

  Revolution® Max 1250
- Bore:

  105 mm
- Stroke:

  72 mm
- Displacement:

  1252 cm³
- Compression ratio:

  13.0:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  127 Nm
- Engine torque (RPM):

  6,750
- Horsepower:

  150 HP / 112 kW @ 9000 rpm
- Lean angle, right (deg.):

  42
- Lean angle, left (deg.):

  42
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  12,994.13 L/100 km
Powertrain

add remove
- Primary drive:

  Gear, 49/89 ratio
- Gear ratios (overall) 1st:

  13.11
- Gear ratios (overall) 2nd:

  9.687
- Gear ratios (overall) 3rd:

  7.509
- Gear ratios (overall) 4th:

  6.057
- Gear ratios (overall) 5th:

  5.08
- Gear Ratios (overall) 6th:

  4.436
Chassis

add remove
- Front fork:

  47mm inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps.
- Rear shocks:

  Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping
- Wheels, optional style type:

  Annodized aluminum tubeless laced
- Wheels, front type:

  Aluminum cast, satin black
- Wheels, rear type:

  Aluminum cast, satin black
- Brakes, caliper type:

  Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
Electric

add remove
- Lights (as per country regulation), indicator:

  LED Bullet Turn Signals
- Gauges:

  6.8 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, mu
Infotainment

add remove
- Type:

  Color TFT w/ Touch
- Headset specifications (if equipped):

  Bluetooth
- Languages:

  Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Phone dependent
- Text-to-Speech (TTS) languages:

  Phone dependent
- Rider / passenger intercom:

  Headset function only
- Vehicle information screen:

  TPMS, Engine temp, Battery Voltage, Ambient Air Temp
- USB:

  Charging and Instrument update, USB-C, 5V, 3A
- Bluetooth:

  Phone/Media Supported
