‹ Home › Inventory › 2023 Harley-Davidson® Low Rider® ST - Vivid Black

$28,499.00. Price includes a $699.00 preparation fee and a $22.00 OMVIC fee for Ontario buyers. Save your money and take advantage of easy Harley-Davidson® financing solutions, we'll explain how "we have you covered" with up to 5 years, unlimited mileage H-D™ Factory Endorsed Coverage Available. Details in-store.

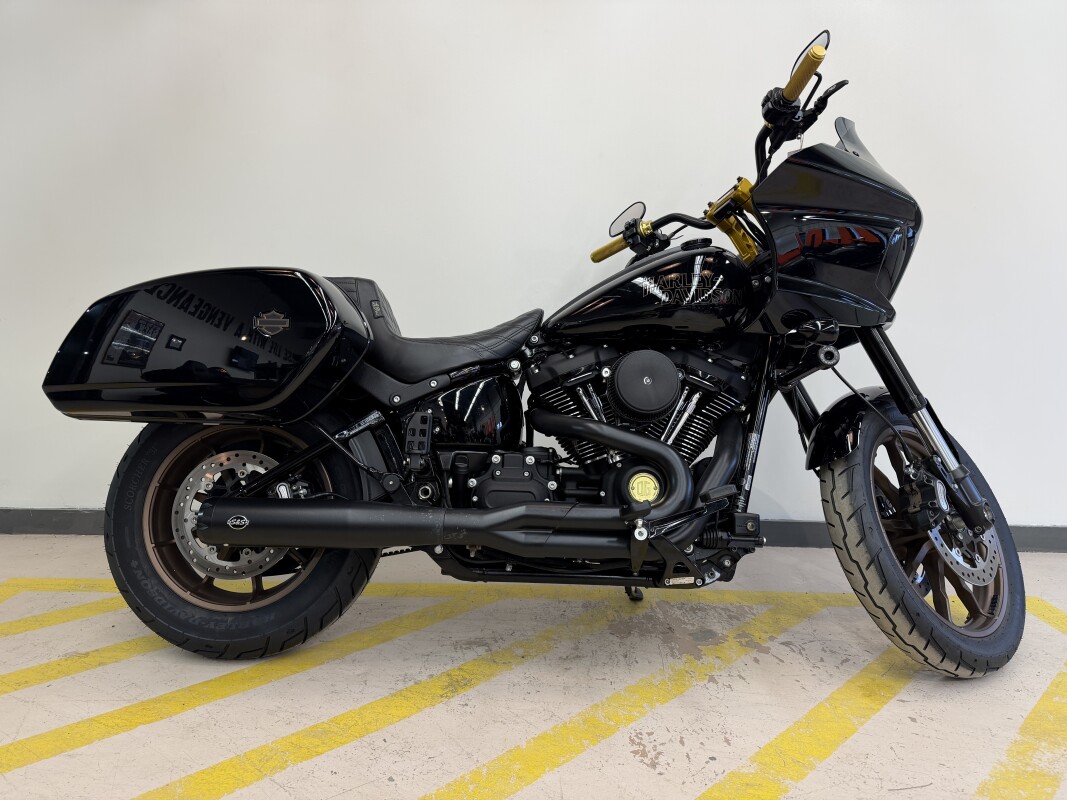

A sport-touring bike with a Softail™ chassis and the V-Twin muscle of a Milwaukee-Eight® 117 powertrain, the Low Rider™ ST is attitude on two wheels that only Harley-Davidson can supply.

Specifications

Dimensions

add remove
- Length:

  2365 mm
- Seat height, unladen:

  720 mm
- Rake (steering head):

  28
- Trail:

  145 mm
- Wheelbase:

  1615 mm
- Tires, front specifications:

  110/90B19,62H,BW
- Tires, rear specifications:

  180/70B16,77H,BW
- Fuel capacity:

  18.9 l
- Oil capacity:

  3.8 l
- Weight, as shipped:

  315 kg
- Weight, in running order:

  327.04 kg
- Luggage capacity – volume:

  1.9 cu ft (0.05 m³)
- Tire, type:

  Michelin™ Scorcher™ "31" front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117
- Bore:

  103.5 mm
- Stroke:

  114.3 mm
- Displacement:

  1923 cm³
- Compression ratio:

  10.2:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 offset shotgun; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  169 Nm
- Engine torque (RPM):

  3500
- Horsepower:

  105 HP / 78 kW @ 5020 rpm
- Lean angle, right (deg.):

  31.3
- Lean angle, left (deg.):

  31.3
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  5 l/100 km
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions :

  128 g/km CO₂
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Single cartridge 43 mm inverted with aluminum fork triple clamps; single rate spring
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment
- Wheels, front type:

  Dark bronze, Radiate cast aluminum wheel
- Wheels, rear type:

  Dark bronze, Radiate cast aluminum wheel
- Brakes, type:

  Front and rear black, Split 7-spoke floating rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
Electric

add remove
- Lights (as per country regulation), indicator:

  All LED, low beam, high beam and signature position lamp, LED Zeppelin tail lamp, Incandescent bullet turn signals
- Gauges:

  2.14 inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
