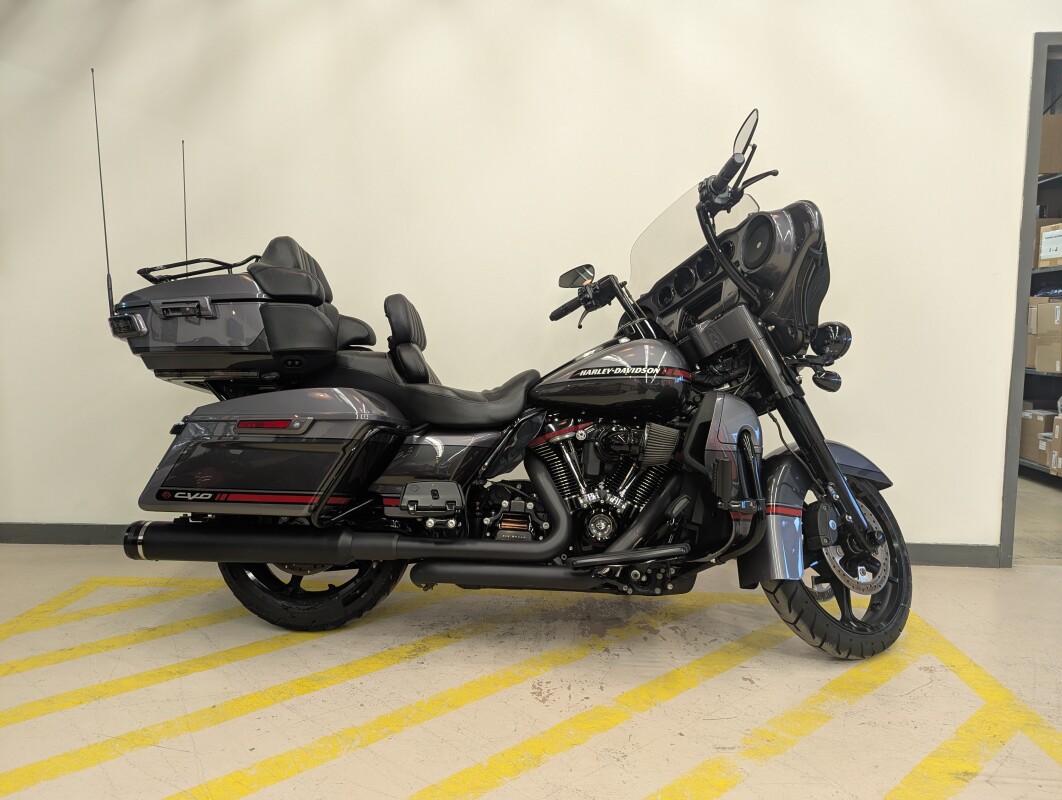

‹ Home › Inventory › 2020 Harley-Davidson® CVO™ Ultra Limited - Smokey Gray & Stormcloud

$35,899. This price includes all applicable fees, only the taxes and licensing are extra. Save your money and take advantage of easy Harley-Davidson® financing solutions, we'll explain how. "We have you covered" with up to 5 years, unlimited mileage H-D™ Factory Endorsed Coverage Available. Details in store.

Specifications

Dimensions

add remove
- Length:

  2600 mm
- Ground clearance:

  135 mm
- Rake (steering head):

  26
- Trail:

  170 mm
- Wheelbase:

  1625 mm
- Tires, front specifications:

  BW 130/70B18 63H
- Tires, rear specifications:

  BW 180/55B18 80H
- Fuel capacity:

  22.7 l
- Oil capacity:

  4.4 l
- Weight, as shipped:

  399 kg
- Weight, in running order:

  415.94 kg
- Luggage capacity – volume:

  4.7 cu ft (0.132 m3)
Engine

add remove
- Engine:

  Twin-Cooled™ Milwaukee-Eight™ 114
- Bore:

  102 mm
- Stroke:

  114 mm
- Displacement:

  1868 cm³
- Compression ratio:

  10.5:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  Chrome, 2-1-2 dual exhaust with tapered mufflers
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  166 Nm
- Lean angle, right (deg.):

  32
- Lean angle, left (deg.):

  32
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  5.5 l/100 km
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.593
- Gear ratios (overall) 2nd:

  6.65
- Gear ratios (overall) 3rd:

  4.938
- Gear ratios (overall) 4th:

  4
- Gear ratios (overall) 5th:

  3.407
- Gear Ratios (overall) 6th:

  2.875
Chassis

add remove
- Wheels, optional style type:

  Gloss Black Slicer II
- Wheels, front type:

  Slicer II cast aluminum with clear coat
- Wheels, rear type:

  Slicer II cast aluminum with clear coat
- Brakes, caliper type:

  32 mm, 4-piston fixed front and rear
Electric

add remove
- Lights (as per country regulation), indicator:

  High beam, running lights, front fender running lights, directional lights, neutral, low oil pressure, engine diagnostics, accessory, speakers, turn signals, security system, gear indication, battery, low fuel warning, cruise control, ABS, fog/aux lamp in
- Gauges:

  Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
Infotainment

add remove
- Infotainment system:

  Boom!™ Box GTS
- Type:

  Full Color TFT
- Watts per channel:

  25
- Speakers:

  4
- Speaker size:

  5.25 inch standard
- Headset specifications (if equipped):

  16-64 ohms
- AM:

  Standard
- FM:

  Standard
- Weather Band (WB):

  Standard
- SD Card, Flash Drive and MP3 - via USB Connection:

  Supported
- Sirius^XM Presets:

  20 - P&A Upgrade (USA & Canada only)
- Languages:

  English (US/UK)GermanSpanish (Mexico/Spain)French (Canada/France)ItalianPortuguese (Portugal/Brazil)RussianCzechPolishDutchTurkishJapanese
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  English (US/UK)GermanSpanish (Mexico/Spain)French (Canada/France)ItalianPortuguese (Portugal/Brazil)RussianCzechPolishDutchTurkishJapanese
- Voice Recognition Languages: Tuner / Media / Navigation:

  English (US/UK)GermanSpanish (Mexico/Spain)French (Canada/France)ItalianPortuguese (Portugal/Brazil)RussianCzechPolishDutchTurkishJapanese
- Text-to-Speech (TTS) languages:

  English (US/UK)GermanSpanish (Mexico/Spain)French (Canada/France)ItalianPortuguese (Portugal/Brazil)RussianCzechPolishDutchTurkishJapanese
- Rider / passenger intercom:

  Standard
- Vehicle information screen:

  Standard
- USB:

  USB/MTP/iPod/iPhone
- Bluetooth:

  Phone/Media Supported
